## The dieline decides how the box feels
- Free dieline, 3D mockup and unlimited design revisions
- Custom sizes with a 50-unit minimum order
- Pantone-accurate printing on recyclable board
- 8–10 business day turnaround, rush available
CBD Vape Boxes
Custom Custom Vape Packaging Box Design & Die Line Mockup | Luxury Custom Box Layout
Free design support
Dielines, 3D mockups and unlimited revisions at no cost.
Custom sizes
Any structure or dimension — no template limits.
Low minimum order
Start from 50 units and scale when you're ready.
Fast turnaround
8–10 business days standard, rush available.
Quality printing
Offset, digital and litho-lam with Pantone matching.
Secure artwork upload
Private, encrypted storage for every file you send.
The dieline decides how the box feels
A custom vape packaging box design starts on paper, not in Photoshop. Before any artwork is placed we build the die line around the device: pen length, cartridge diameter, charger, card, and the space a shrink band needs. Get that wrong and the box either rattles or refuses to close, and no amount of foil fixes it.

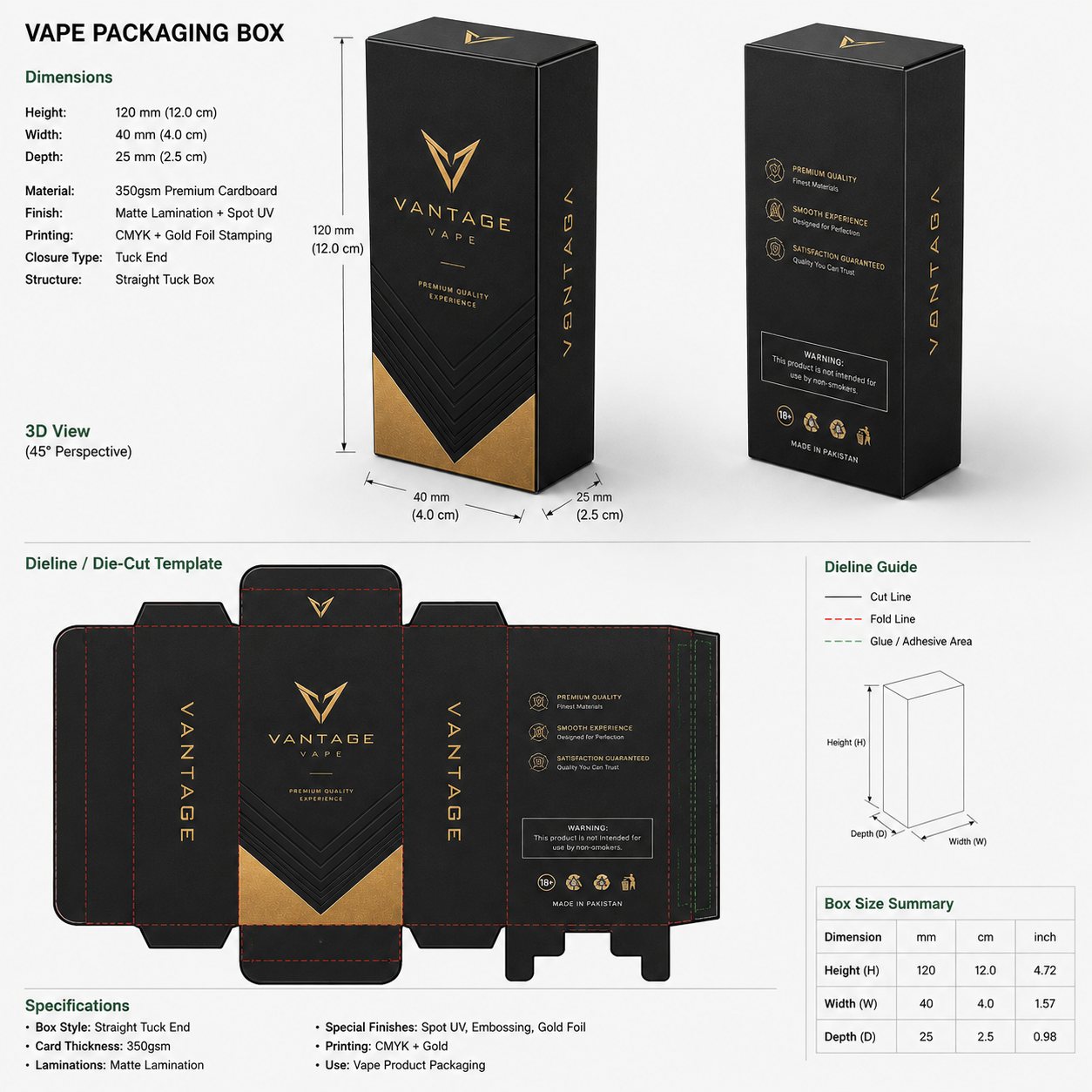

You receive a flat dieline as a print-ready file plus a 3D mockup that rotates, so you can see how panels meet at the corners before committing to plate.
Layout choices for a luxury vape box
Most brands pick one of three layouts. A straight tuck end carton with a printed insert keeps unit cost low and stacks well on shelf. A rigid magnetic box with a foam or greyboard cradle suits limited editions and gift sets. A sleeve and tray gives you two printed surfaces and a slow reveal when the tray slides out.
Inside, we mark where the device sits, where the manual folds, and where the tamper seal crosses the flap, so your packing team repeats the same steps every time.
Compliance and small print
Vape cartons carry nicotine or hemp warnings, batch codes, strength and a scan code. We place the warning block on a flat panel at a legible size, keep the QR at 20mm with a quiet border, and leave varnish off the code area so scanners read it first time. Serial or batch numbers can be inkjetted inline during production.
Print, finish and next step
Offset CMYK with Pantone spot colours, matte or soft-touch lamination, spot UV, hot foil and emboss are all available on the same run. Board options run 350gsm SBS, recycled kraft or 2mm greyboard for rigid shells.
Minimum order is 50 boxes and production takes 8 to 10 working days. Free dieline and mockup come first. See more in our [CBD Boxes](/cbd-boxes) and [Rigid Gift Boxes](/rigid-gift-boxes) ranges, or send your device dimensions for a quote.
Premium finishes
Upgrade Your Custom Vape Packaging Box Design & Die Line Mockup | Luxury Custom Box Layout With Premium Finishes
Combine coatings, foils and structural add-ons to match the shelf presence you want.
Matte lamination
Soft, non-reflective film that hides fingerprints and feels premium.
Gloss lamination
High-shine film that makes colours and photography pop on shelf.
Soft-touch coating
Velvet, suede-like surface used by luxury and beauty brands.
Foil stamping
Metallic gold, silver, rose or holographic foil pressed into the board.
Embossing
Raised logo or pattern that adds tactile depth to your branding.
Debossing
Recessed impression for a subtle, understated premium detail.
Spot UV
Selective gloss varnish that highlights logos and key artwork.
Varnish
Protective matte or gloss coat applied across the full sheet.
Window cut-out
Die-cut opening with optional clear PET film to show the product.
Custom inserts
Foam, board or moulded pulp inserts that lock the product in place.
Purpose built

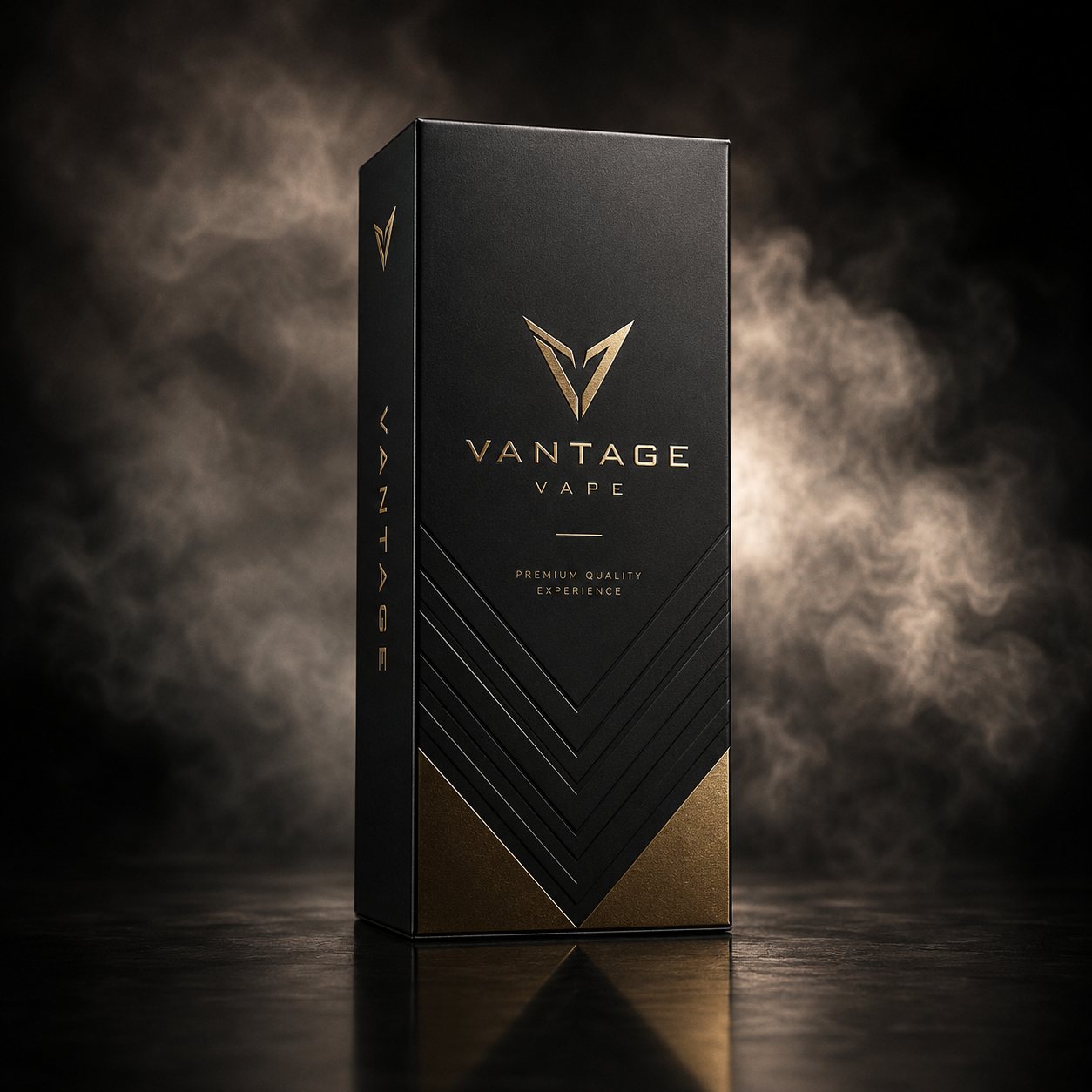

Packaging Designed Around Your Product
Every structure starts from your product's real dimensions, weight and fragility. We engineer the dieline so the fit is snug, the closure is secure and unboxing feels deliberate rather than accidental.
Branding

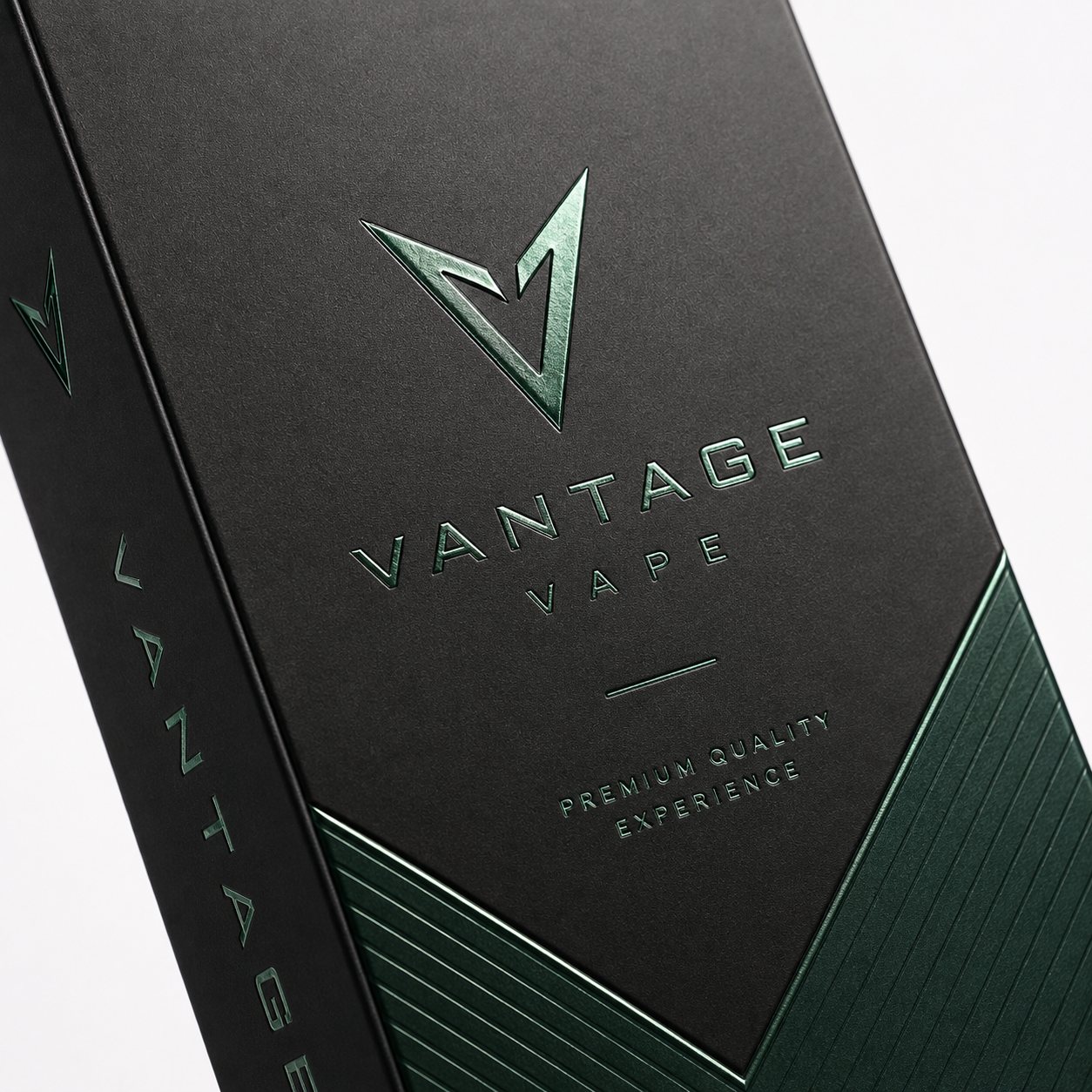

Custom Branding and Print That Stays Consistent
Full-colour CMYK, Pantone spot matching and metallic inks keep your brand identical across every run. Logos, ingredient panels, compliance marks and barcodes are all placed to print cleanly at production speed.
Protection
Built to Protect What's Inside
Board grade, flute profile and insert design are chosen for the journey your product actually takes — warehouse handling, courier transit and shelf restocking — so damage rates stay low.
Retail ready
Shelf Presentation That Earns a Second Look
Facing panels, colour blocking and finish choices are balanced for retail lighting so your packaging reads clearly from a distance and rewards a closer look in hand.
Logistics
Performance Across the Supply Chain
Flat-packed shipping, stackable footprints and consistent tolerances keep freight costs down and make fulfilment faster for you or your 3PL partner.
Sustainability
Sustainable Materials Without Compromise
Recycled board, FSC-certified stock, soy-based inks and plastic-free finishing options are available on this style — with the same structural strength and print quality.
Luxury
Luxury Finishing Options on Request
Foil stamping, soft-touch film, embossing and spot UV can be combined to lift a standard box into a premium unboxing moment worth sharing.
How it works
Your Customization Process
Six clear steps from first idea to delivered packaging.
Browse and select a product
Pick the packaging style that fits your product.
Enter size and quantity
Share dimensions, quantity and material preference.
Upload artwork or request design help
Send print-ready files or let our designers build them.
Review the digital proof
Check a 3D mockup and dieline before anything prints.
Approve production
Give the go-ahead and we lock your run into the press schedule.
Receive the finished packaging
Flat-packed, protected and delivered to your door.
Specifications
Custom Vape Packaging Box Design & Die Line Mockup | Luxury Custom Box Layout Specifications
- Materials
- 14pt–24pt SBS cardstock, Kraft paperboard, E-flute corrugated, Rigid chipboard
- Thickness
- 12pt–24pt SBS, E/B/BC flute corrugated, 1.5–3mm rigid
- Printing methods
- Offset, digital, flexo, litho-lamination, screen
- Finishes
- Matte lamination, Gloss lamination, Soft-touch velvet, Spot UV, Gold & silver foil stamping, Embossing / debossing
- Box styles
- Tuck end, mailer, sleeve, two-piece, gable
- Sizes
- Fully custom — any length, width and height
- Minimum order quantity
- 50 units
- Production time
- 8–10 business days
- Shipping
- Free ground shipping across the USA, worldwide on request
- Artwork requirements
- Vector PDF/AI/EPS, 300dpi raster, 3mm bleed, CMYK
FAQ
Frequently Asked Questions
Send your sizes and quantity and we'll return itemized pricing with a free dieline.
Related products
More CBD Vape Boxes Styles
Custom CBD Vape Cartridge Tuck End Boxes
A slim tuck end carton built around your cartridge size, ships flat and folds shut in a couple of seconds.
CBD Vape Pen Boxes with Clear Window
A die-cut window down the front panel so shoppers can see the pen and the oil colour before they buy.
Luxury Rigid Magnetic CBD Vape Kit Boxes
A rigid magnetic box with a cut foam insert that holds a battery and two or three cartridges in place.
Child Resistant CBD Vape Cartridge Boxes
A push-and-slide sleeve and tray that a child cannot open easily but an adult can, ideal for licensed retail.
Custom CBD Vape Boxes with 3D Mockup & Dieline
See your vape box as a 3D mockup with every dimension marked, plus the flat dieline, before you pay for a print run.
Customer reviews
No reviews yet for Custom Vape Packaging Box Design & Die Line Mockup | Luxury Custom Box Layout. If you have ordered these boxes, your feedback helps the next buyer.
